Waveform Generator

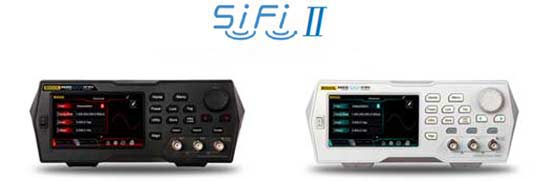

16 Bit Waveform Generators
Customers who need the highest signal integrity and complex signal generation will appreciate our new the SiFi II Generators. SiFi II combines a point-to point sampling architecture and 16 Bit Resolution with enhanced generation capability and deep memory to deliver high fidelity long duration waves at unprecedented prices.
14 Bit Waveform Generators
Customers who need reliable basic function generation from 25MHz to 350MHz will appreciate the flexibility , performance and reliability of RIGOL's 14Bit Generator Portfolio
RIGOL Waveform Generator Portfolio
| Product Series | Frequency range | Resolution | Sample Rate | Max Arb Memory | Output channels |
|---|---|---|---|---|---|
| DG800 Series | 10MHz to 35MHz | 16Bit | 125MSa/sec | 8MPts | 1 or 2 |
| DG900 Series | 50MHz to 100MHz | 16Bit | 250MSa/sec | 16MPts | 2 |
| DG1000Z Series | 25MHz to 60MHz | 14Bit | 200MSa/sec | 8MPts | 2 |
| DG4000 Series | 60MHz to 200MHz | 14Bit | 500MSa/sec | 16KPts | 2 |
| DG5000 Series | 70MHz to 350MHz | 14Bit | 1GSa/sec | 128MPts | 1 or 2 |
- $725As multifunction, high performance and portable generators, the DG1000Z series are ideal for a variety of applications including education, R&D, production and testing.
- $964High quality two channel function / arbitrary waveform generator with 50 MHz bandwidth, 250 MSa/s and 16 Mpts memory.
$825DG1032Z | Arbitrary Waveform Function Generator- $1,278High quality two channel function / arbitrary waveform generator with 70 MHz bandwidth, 250 MSa/s and 16 Mpts memory.
$1,390DG1062Z | Arbitrary Waveform Function Generator- $1,603High quality two channel function / arbitrary waveform generator with 100 MHz bandwidth, 250 MSa/s and 16 Mpts memory.
![Rigol DG4062 60MHz, 500Msa/s 2Ch 7" LCD](/wa-data/public/shop/products/90/15/1590/images/704/704.200.jpg "Rigol DG4062 60MHz, 500Msa/s 2Ch 7" LCD")
$1,512Generators up to 160 MHz (DG4000) 2 output channel 500 MSa/s sample rate 130 built-in waveforms 7-inch color LCD display 14 bit vertical resolution Standard Interfaces including LXI-C (Ethernet), USB device and USB host
$479High quality one channel function / arbitrary waveform generator with 10 MHz bandwidth, 125 MSa/s and 2 Mpts memory (up to 8Mpts as option).![Rigol DG4102 100MHz, 500Msa/s 2Ch 7" LCD](/wa-data/public/shop/products/91/15/1591/images/721/721.200.png "Rigol DG4102 100MHz, 500Msa/s 2Ch 7" LCD")
$1,628Generators up to 160 MHz (DG4000) 2 output channel 500 MSa/s sample rate 130 built-in waveforms 7-inch color LCD display 14 bit vertical resolution Standard Interfaces including LXI-C (Ethernet), USB device and USB host
$516High quality one channel function / arbitrary waveform generator with 10 MHz bandwidth, 125 MSa/s and 2 Mpts memory (up to 8Mpts as option).![Rigol DG4162 160MHz, 500Msa/s 2Ch 7" LCD](/wa-data/public/shop/products/92/15/1592/images/730/730.200.png "Rigol DG4162 160MHz, 500Msa/s 2Ch 7" LCD")
$2,094Generators up to 160 MHz (DG4000) 2 output channel 500 MSa/s sample rate 130 built-in waveforms 7-inch color LCD display 14 bit vertical resolution Standard Interfaces including LXI-C (Ethernet), USB device and USB host
$3,264Rigol Arbitrary Waveform Signal Generator DG5071 70MHz, 1000Msa/s 1Ch 4.3" LCD High quality 1 channel DG with 70MHz bandwidth and 1000MSa/s.
$513High quality one channel function / arbitrary waveform generator with 10 MHz bandwidth, 125 MSa/s and 2 Mpts memory (up to 8Mpts as option).
$4,781Rigol Arbitrary Waveform Signal Generator DG5072 70MHz, 1000Msa/s 2Ch 4.3" LCD High quality 2 channel DG with 70MHz bandwidth and 1000MSa/s.
$6,576Special Features: 4.3 inches, 16M true color TFT LCD 350 MHz, 250 MHz ,100MHz or 70 MHz maximum sine output frequency, 1 GSa/s sample rate, 14 bits resolution Single/dual-channel models. The dual-channel model is isolated from the earth and within channel and channel and supports frequency and phase coupling The 16+2 channels digital output module (optional) together with the analog channel can rebuild the more mixed signals in daily practice Support an external power amplifier (optional) that can be configured online
$7,821Rigol Arbitrary Waveform Signal Generator DG5102 100MHz, 1000Msa/s 2Ch 4.3" LCD High quality 2 channel DG with 100MHz bandwidth and 1000MSa/s.
$548High quality one channel function / arbitrary waveform generator with 10 MHz bandwidth, 125 MSa/s and 2 Mpts memory (up to 8Mpts as option).
$11,266Special Features: 4.3 inches, 16M true color TFT LCD 350 MHz, 250 MHz ,100MHz or 70 MHz maximum sine output frequency, 1 GSa/s sample rate, 14 bits resolution Single/dual-channel models. The dual-channel model is isolated from the earth and within channel and channel and supports frequency and phase coupling The 16+2 channels digital output module (optional) together with the analog channel can rebuild the more mixed signals in daily practice Support an external power amplifier (optional) that can be configured online
$612High quality one channel function / arbitrary waveform generator with 10 MHz bandwidth, 125 MSa/s and 2 Mpts memory (up to 8Mpts as option).
$13,707Rigol Arbitrary Waveform Signal Generator DG5252 250MHz, 1000Msa/s 2Ch 4.3" LCD High quality 1 channel DG with 250MHz bandwidth and 1000MSa/s.
$647High quality one channel function / arbitrary waveform generator with 10 MHz bandwidth, 125 MSa/s and 2 Mpts memory (up to 8Mpts as option).
$16,428Rigol Arbitrary Waveform Signal Generator DG5351 350MHz, 1000Msa/s 1Ch 4.3" LCD High quality 1 channel DG with 350MHz bandwidth and 1000MSa/s.
$948High quality one channel function / arbitrary waveform generator with 100 MHz bandwidth, 250 MSa/s and 16 Mpts memory
$21,871Rigol Arbitrary Waveform Signal Generator DG5352 350MHz, 1000Msa/s 2Ch 4.3" LCD High quality 2 channel DG with 350MHz bandwidth and 1000MSa/s.
$1,215High quality one channel function / arbitrary waveform generator with 100 MHz bandwidth, 250 MSa/s and 16 Mpts memory
$1,547High quality one channel function / arbitrary waveform generator with 100 MHz bandwidth, 250 MSa/s and 16 Mpts memory
$127DG800-ARB8M Memory Depth Upgrade Option to 8 Million points
$179DG800-ARB8M Memory Depth Upgrade Option to 8 Million points
